Today I thought we'd ... er.... make a small lamp.
With um... batteries and bulbs... and wires and.... stuff.

To defend myself a bit, I'm going to say I love my
sewing machine and my tubes of glue-with-intoxicating-
fumes. But I also love my multimeter and the tiny little
electronic components that are the innards of wonderful
things like flashlights and speakers. Combined with
cardboard, they make really silly and fun toys!

Still with me? OK, here goes.........

Now the circuit components can be bought in the form
of ready-assembled Science kits or individual pieces.
For retail stores, try places that sell homeschooling
resources, like ABCToy Zone (if you live in Singapore,
head to Sim Lim Tower and trawl the upper floors).
For online stores, try sites like this. Or you could
dismantle old gadgets that run on batteries
(stay away from TVs!) and save their innards like
my brother and I used to do as kids.

Here are some useful things to start with:


(Top row L-R: Insulated copper bell wire, alligator
(crocodile) clips, bulb holders
Bottom row L-R: bulb, switches, battery holders).

Or you could just get the barest and improvise with a
roll of masking tape, the way my brother and I did
all our experiments. The barest would be
  • A bulb - steal from flashlight
  • Wires - buy from hardware store and strip the ends with scissors
  • Batteries
and connect the parts of the circuit by just winding

and sticking down with tape:


If you can't find switches (which are nice for turning bulbs
on and off), make your own with cardboard and office
supplies. See here for the Switch Tutorial.


And if you can't find a bulb holder, use a wooden clothespeg
(the spring-loaded kind) or make a cardboard one.
Go here for the Bulb Holder tutorial.

But back to the lamp. These little bulbs are very safe
but tiny. To get some decent brightness, a reflector
is helpful. That's the silvery bowl that a flashlight bulb is
in the middle of. Make your own out of cardboard and
aluminum foil, if you like.
It's a bit like a cardboard collar for a dog.

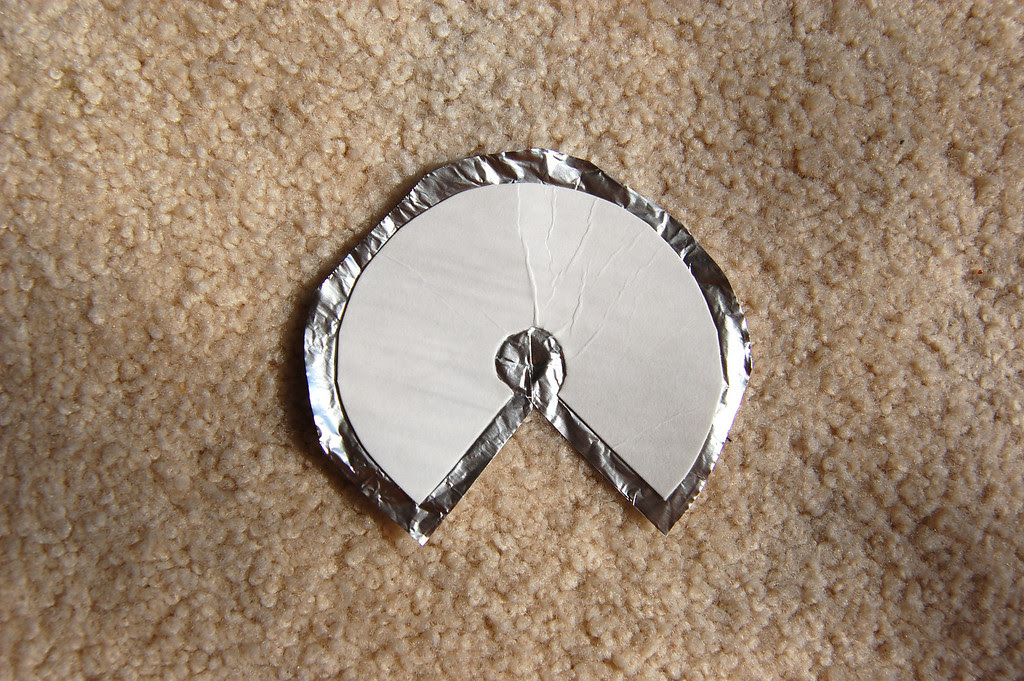

Cut out a circle. Cut a quadrant out.
Also cut a small hole in the middle for the bulb.

Glue onto the dull surface of the foil
(we need the shiny surface exposed)

Cut around the cardboard,
leaving about a quarter inch allowance

to fold over the back.

Tape the straight ends together on the non-foil side

and stick a bulb through the middle hole.

To make the lampshade, I covered the outer
(non-foil) surface of the reflector with fancy paper.

The base of the lamp is a thread spool wrapped with
more fancy paper. The hole in the middle of the spool
is good for hiding wiring. Attach the shade to the base
with anything that props it up - a roll of stiff
transparent plastic (poke holes for ventilation)
or toothpicks glued down.

For the circuit you'll need
  • 1 or 2 batteries (any size except the square 9V). 2 batteries give a brighter light.
  • 3 insulated wires with stripped ends
  • A switch
I taped two AA batteries end-to-end with the
"-" of one touching the "+" of the other.

Following the circuit diagram,
  • Wire 1 joined one end of the battery pack to one paper fastener of the switch.
  • Wire 2 joined other paper fastener of the switch to the bottom of the bulb.
  • Wire 3 joined the metal casing of the bulb to the other end of the battery pack.
All the "joints" were secured with masking tape -
just to reassure everyone that the official fancy
components aren't really needed to make this.


Install lamp in resident dollhouse and enjoy!

Bet you all didn't see that coming.
Loopy blog author!
